Emergency Home Solar Power Storage 5kW Inverter 5.22kWh UN38.3 Approval

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : $1200-1400

Weight (kg) : 60.8

Safety Protection : High/Under Voltage Protection, Short Circuit Protection, Overload Protection.

Contact Now

Emergency Home Power Supply 5kW Inverter 5.22kWh

This wall-mounted home energy hub serves as an all-in-one unit that scales from 5.22kWh and integrates both inverter and PV input functionality. It optimizes solar self-consumption for residential applications, provides secure power for villas and home offices, and switches to backup power within 20ms during grid failures.

Key Features

Cost-Effective & Durable: Utilizes Lithium Iron Phosphate (LiFePO4) technology with cycle life up to 6000 cycles, supporting daily use for over 15 years while reducing long-term operational costs.
Single MPPT PV Input: Supports up to 5kW PV input with MPPT range of 150-500V, compatible with most photovoltaic modules.
Adjustable Power Factor: Power factor adjustable from 0.8 leading to 0.8 lagging, ensuring compatibility with various grid requirements.
High Efficiency & Low THDi: Output THDi less than 3% delivers high power quality, safe for sensitive electronic equipment.
Fast Grid Transfer: Grid transfer time of 20ms ensures uninterrupted operation of critical appliances.
Smart Communication: Supports CAN/RS485 communication for integration with energy management systems, enabling remote monitoring and O&M to improve management efficiency.
Modern Design: Wall-mounted design saves floor space and simplifies cleaning.

Emergency Home Solar Power Storage 5kW Inverter 5.22kWh UN38.3 Approval

Specification of WSL48100

Battery Data

Model	W5-5K
Cell Chemistry	LFP/102Ah
Rated Energy (kWh)	5.22kWh
Pack Configuration	1P16S
Rated Voltage (V)	51.2V
Operating Voltage Range (VDC)	44.8-57.6VDC

PV Input

Max. PV Input Power (W)	5,000W
Max. PV Input Voltage (V)	500V
MPPT Voltage Range (V)	150-500V
Start-up Voltage (V)	370V
Number of MPPTs (Pcs)	1
Max. PV Input Current per MPPT (A)	60A

AC Input & Output

Rated Input/Output Power (W)	5,000W
Rated Input/Output Voltage (V)	220V/230V/240V (Adjustable)
Rated AC Frequency (Hz)	50/60Hz
Max. Output Current (A)	22A
Total Harmonic Distortion (THDi)	<3%
Power Factor	0.8 Leading to 0.8 Lagging
Grid Transfer Time (ms)	20ms
Grid Connection	Single Phase

General Data

Dimensions (W×D×H) (mm)	600×163×655
Weight (kg)	60.8
Altitude (m)	4,000m (Derating above 1,000m)
Display	LCD Display
Safety Protection	High/Under Voltage Protection, Short Circuit Protection, Overload Protection
BMS Communication	CAN/RS485
IP Rating	IP21
Operating Temperature (℃)	-15~60℃ (Battery: 0~40℃)
Relative Humidity	20%~95% (No Condensing)
Cycle Life	6,000 Cycles
Installation Method	Wall-Mounted
Certifications	CE, RoHS, UN38.3

Product Tags:

emergency home solar power storage

emergency home power storage

5.22kwh home power storage

Buy cheap Emergency Home Solar Power Storage 5kW Inverter 5.22kWh UN38.3 Approval product

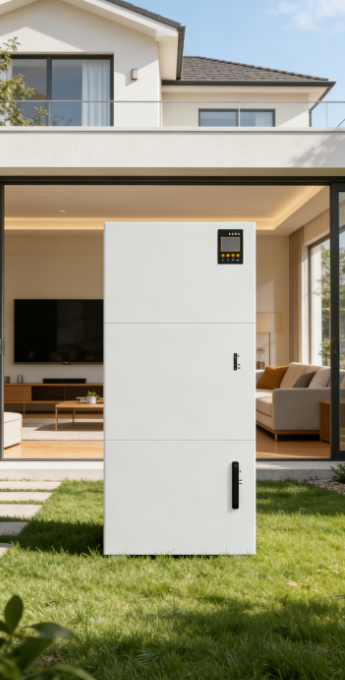

Emergency Home Solar Power Storage 5kW Inverter 5.22kWh UN38.3 Approval Images
